Hot Dipped Galvanized Defensive Bastion Barrier Welded Mesh Gabion

Name: Hot Dipped Galvanized Defensive Bastion Barrier Welded Mesh Gabion
Brand: KAAPGN
Price: 25 USD

Brand Name : KAAPGN

Model Number : KPN71

Place of Origin : HB,CN

MOQ : 300 Units

Price : USD 25-45/Unit

Payment Terms : T/T, L/C, Western Union

Supply Ability : 10000 Units/Month

Delivery Time : 7-20 days

Packaging Details : pallets or as your request

Product Name : Gabion Defensive Barrier

Material : Low Carbon Iron Wire

Thickness : 4mm,5mm,6mm

Mesh Size : 50mmx50mm,75mmx75mm,76.2mmx76.2mm

Surface Treatment : Galvanized ,Stainless Steel ,Powder Coated

Size : 0.5x0.5x05m,1x0.5x0.5m,1x1x1m.1x1x2m

Usage : Military Defensive ,Flood Control

MOQ : 300 Units

Contact Now

Hot Dipped Galvanized Welded Gabion Defensive Bastion Barrier

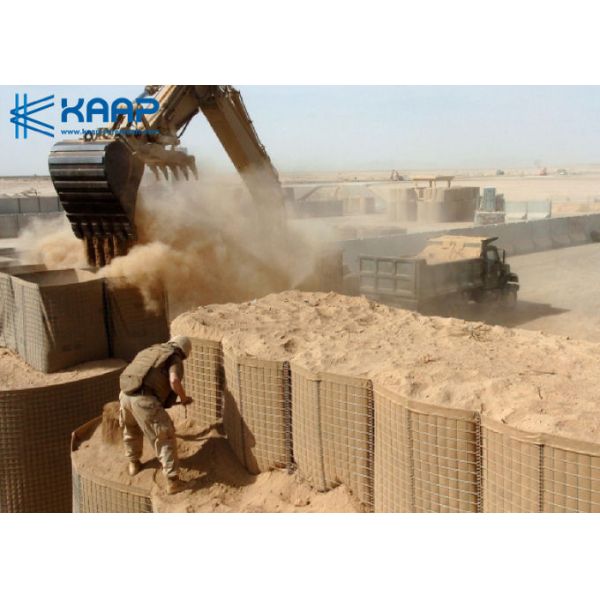

Gabion Defensive Barrier also called military bastion is a kind of military defensive wall, which can block the simple attack from outside. It is a modern gabion primarily used for flood control and military fortifications. It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against explosions or small-arms.

Hot Dipped Galvanized Defensive Bastion Barrier Welded Mesh Gabion

Features:
 1) Easy to use and easy to operate
 2) Strong tensile force, corrosion resistance
 3) Long service life, can be reuse

Specification

Wire	Sprial	Mesh	Height	Width	Length	Geotextile	Weight
Wire 8(4mm) Zinc aluminum alloy wire	Wire 8 (4mm) Wire 10(3mm) Zinc aluminum alloy wire	3”x 3” (76.2mm x76.2mm)	4'6" (1.37m)	32'9" (10m)	32'9" (10m)	0.08” (2mm) 300g/㎡	156kg
Wire 8(4mm) Zinc aluminum alloy wire	Wire 8 (4mm) Wire 10(3mm) Zinc aluminum alloy wire	3”x 3” (76.2mm x 76.2mm)	2' (0.61m)	4' (1.22m)	4' (1.22m)	0.08” (2mm) 300g/㎡	10.5kg
Wire 8(4mm) Zinc aluminum alloy wire	Wire 8 (4mm) Wire 10(3mm) Zinc aluminum alloy wire	3”x 3” (76.2mm x 76.2mm)	3'3" (1.0m)	32'9" (10m)	32'9" (10m)	0.08” (2mm) 300g/㎡	112kg
Wire 8(4mm) Zinc aluminum alloy wire	Wire 8 (4mm) Wire 10(3mm) Zinc aluminum alloy wire	3”x 3” (76.2mm x 76.2mm)	3'3" (1.0m)	32'9" (10m)	32'9" (10m)	0.08” (2mm) 300g/㎡	178kg
Wire 8(4mm) Zinc aluminum alloy wire	Wire 8 (4mm) Wire 10(3mm) Zinc aluminum alloy wire	3”x 3” (76.2mm x 76.2mm)	2' (0.61m)	10' (3.05m)	91' (27.74m)	0.08” (2mm) 300g/㎡	24kg
Wire 8(4mm) Zinc aluminum alloy wire	Wire 8 (4mm) Wire 10(3mm) Zinc aluminum alloy wire	3”x 3” (76.2mm x 76.2mm)	7'3" (2.21m)	91' (27.74m)	91' (27.74m)	0.08” (2mm) 300g/㎡	967.5kg
Wire 8(4mm) Zinc aluminum alloy wire	Wire 8 (4mm) Wire 10(3mm) Zinc aluminum alloy wire	3”x 3” (76.2mm x 76.2mm) 4”x 4” (10.1mm x10.1mm)	2.21m	2.13m	333m	0.08” (2mm) 300g/㎡
			2.21m	2.13m	237m	0.08” (2mm) 300g/㎡
			2.21m	1.52m	224m
			2.21m	1.06m	321m
